HISH: Inserts for Thermoplastics
FSUK-HISH
FSUK-HIS
Description

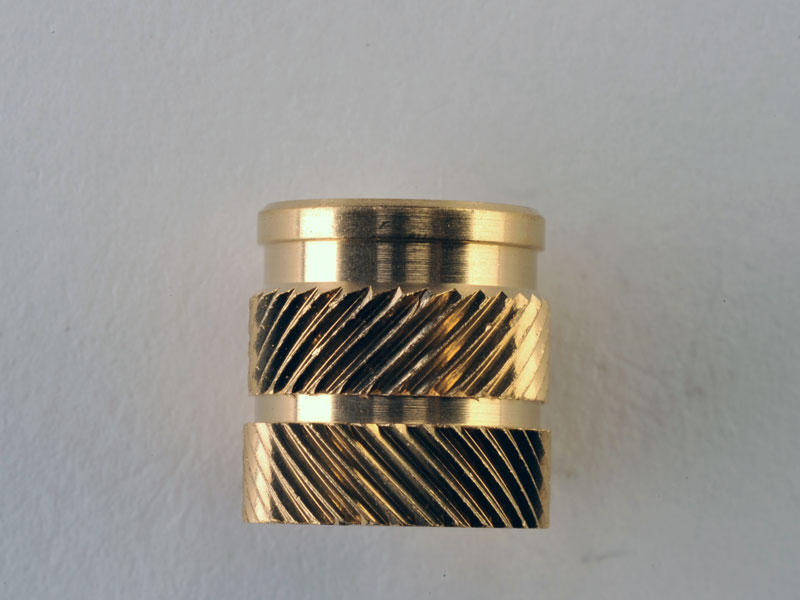

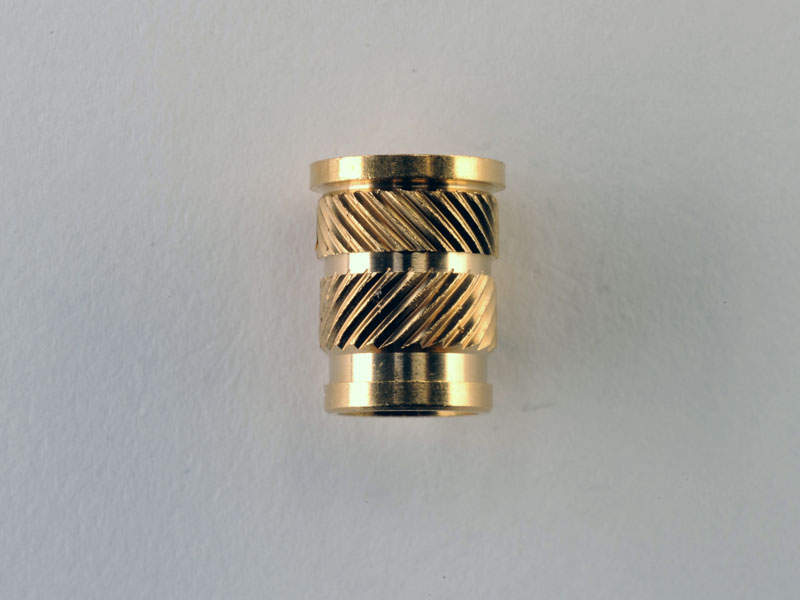

The HIS range of inserts has been developed with an opposing herringbone knurl on the outside to give a high level of performance in most Thermoplastics. This insert is available in a headed version to increase performance and aid with electrical contacts. It's designed to be installed into drilled or moulded holes using either direct heat or ultrasonic. The insert is designed with a pilot end to aid insertion.

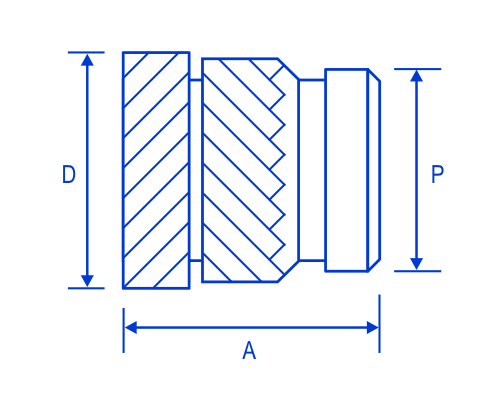

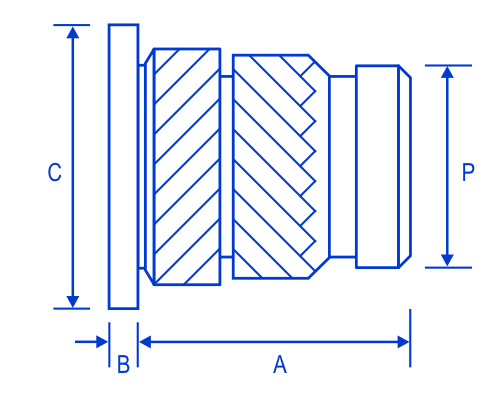

Dimensions
| thread | A | B | C | D | P | holesize(+0.1mm-0.0) | wall thickness | downloads |
| M2 | 4.0 | 0.53 | 4.8 | 3.6 | 3.1 | 3,2 | 1.3 | download |
| M2.5 | 5.7 | 0.61 | 5.5 | 4.6 | 3.9 | 4.0 | 1.6 | download |
| M3 | 5.7 | 0.61 | 5.5 | 4.6 | 3.9 | 4,0 | 1.6 | download |
| M3.5 | 7.1 | 0.76 | 6.4 | 5.4 | 4.7 | 4.8 | 1.8 | download |
| M4 | 8.1 | 0.91 | 7.1 | 6.3 | 5.5 | 5.6 | 2.1 | download |
| M5 | 9.5 | 1.09 | 7.9 | 7.1 | 6.3 | 6.4 | 2.6 | download |
| M6 | 12.7 | 1.35 | 9.5 | 8.7 | 7.9 | 8.0 | 3.3 | download |
| M8 | 12.7 | 1.35 | 11.1 | 10.2 | 9.5 | 9.6 | 4.5 | download |
| M10 | 12.7 | 1.35 | 14.0 | 12.0 | 11.8 | 11.9 | 6.0 | download |
Advantages
HIGH TORQUE AND PULL OUT SUITABLE FOR THIN BOSS WALLS TO MAXIMISE DESIGN SPACE HEADED VERSION FOR ELECTRICAL CONTACT AND HIGHER PERFORMANCE
Comments
DESIGN ALLOWS RAPID INSTALLATION USING HEAT OR ULTRASONICS
NOW STOCKING NON STANDARD LENGTHS IN M3 UP TO M6 AND MALE THREADED VERSIONS
EXAMPLE DESIGNATION : FSUK HIS-B-M3 UNHEADED
FSUK HISH B M3 HEADED VERSION
PLEASE NOTE HOLE SIZES APPLY TO THE POINT REACHED AT THE BOTTOM OF THE INSERT
AVAILABLE IN BRASS + SOME SIZES IN STAINLESS
MOST SIZES AVAILABLE FROM STOCK
CONTACT FSUK FOR FURTHER INFO
click HERE for a PDF version of this brochure page
Most sizes available from stock contact fsuk for further info.
